Detalhes do produto:
Condições de Pagamento e Envio:
|
| NOME: | Agitando a tabela | Palavra-chave: | Equipamento da separação |
|---|---|---|---|
| Aplicação: | Equipamento do molho do minério | Máximo Feeding Tamanho: | 0.15-2 |
| Uma quantidade de alimentação: | 15-60t/d | Espessura de alimentação: | 15-30% |
| Poder do motor: | 1.1KW | certification: | IOS/CE |
| Vantagem: | Vida útil longa | Tamanho: | Modelo diferente |
| Realçar: | Agitando o minério da tabela que veste o equipamento,Tabela do abanador da mineração do ouro de 60 T/H,Tabela do abanador da mineração do ouro de 10 T/H |
||

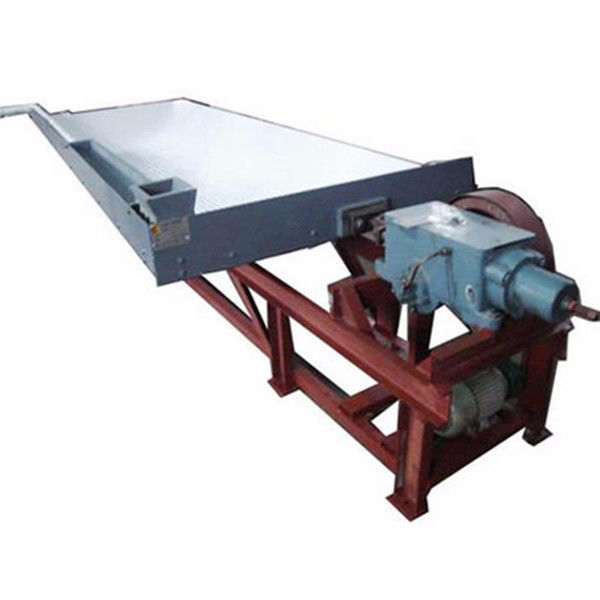

Low energy high efficiency 10-60 t/h Shaking Table separation equipment
The shaking table is gravity separation equipment for sorting of fine materials, widely used for sorting tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc..
The main structure
Shaking table is primarily composed by the bedside, motor, slope regulation device, bed, bunker, trough, rifle bar and lubrication systems.
Working Principle
Shaker beneficiation is by dint of the combined effects of mechanical slate symmetrical reciprocating motion and beveled thin layer of current on a tilt bed surface to make mineral particles be loosely layered on the bed surface, so that sort minerals according to the density .
Performance characteristics
The shaking table is a combination of the domestic shaker and gravity beneficiation technology, having high concentration ratio, good sorting efficiency, simple operation, etc., and can get final concentrate and final tailings once for all.
Compared with the traditional process, it has the advantage of no pharmacy, low energy consumption and easy management, with high performance and low cost.
Technical Data
| Name | Unit | Grit concentrating table | Fine sand concentrating table | Sludge concentrating table | |
| Dimensions | Length | Degree | 4450 | 4450 | 4450 |
| Driving part width | Degree | 1855 | 1855 | 1855 | |
| Concentrate part width | Degree | 1546 | 1546 | 1546 | |
| Max. feeding size | Degree | 2 | 0.5 | 0.15 | |
| Feeding amount | T/d | 30-60 | 10-20 | 15-25 | |
| Feeding thickness | % | 25-30 | 20-25 | 15-25 | |
| Journey | Degree | 16-22 | 11-16 | 8-16 | |
| Frequency | F | 15-48 | 48-53 | 50-57 | |
| Water quantity | T/d | 80-150 | 30-60 | 10-17 | |
| Horizontal obliquity | Degree | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Portrait obliquity | % | 1.4 | 0.92 | ---- | |
| Table board corner | Degree | 32-42 | 40 | 42 | |
| Concentrating square | ---- | 7.6 | 7.6 | 7.6 | |
| Table board length ratio | ---- | 2.6 | 2.6 | 2.6 | |
| Motor power | KW | 1.1 | 1.1 | 1.1 | |
